MMO Titanium Anodes for Electrophosphating Solutions
As a manufacturer with over a decade of experience in the R&D and manufacturing of MMO titanium anodes, Wstitanium has always focused on specific electrophosphating scenarios. We have provided electrophosphating-specific MMO titanium anode products and solutions to over 100 customers in the automotive, home appliance, and aerospace industries globally. Wstitanium strictly adheres to authoritative international standards such as ASTM and NACE, meeting the environmental compliance requirements of major global markets.
MMO Titanium Anode Coating System
The core reaction of electrophosphating technology is the oxygen evolution reaction (OER). Operating conditions include weakly acidic/weakly alkaline baths and corrosive environments containing phosphate/small amounts of chloride ions. Based on NASF electrophosphating specifications, NACE anode performance testing standards, and the findings of the 2024 *Scientific Reports (Nature)* study on the catalytic performance of the Oxygen Evolution Reaction in MMO Anodes, Wstitanium has developed three coating systems specifically for electrophosphating applications.
- ASTM Grade 1/2
- Design life 3-5 years
- ASTM D3359 5B Grade
- Precious metal loading 5-50g/m²
- ≥3000h (1mol/L H₂SO₄, 20kA/m²)
- Oxygen evolution overpotential ≤1.45V

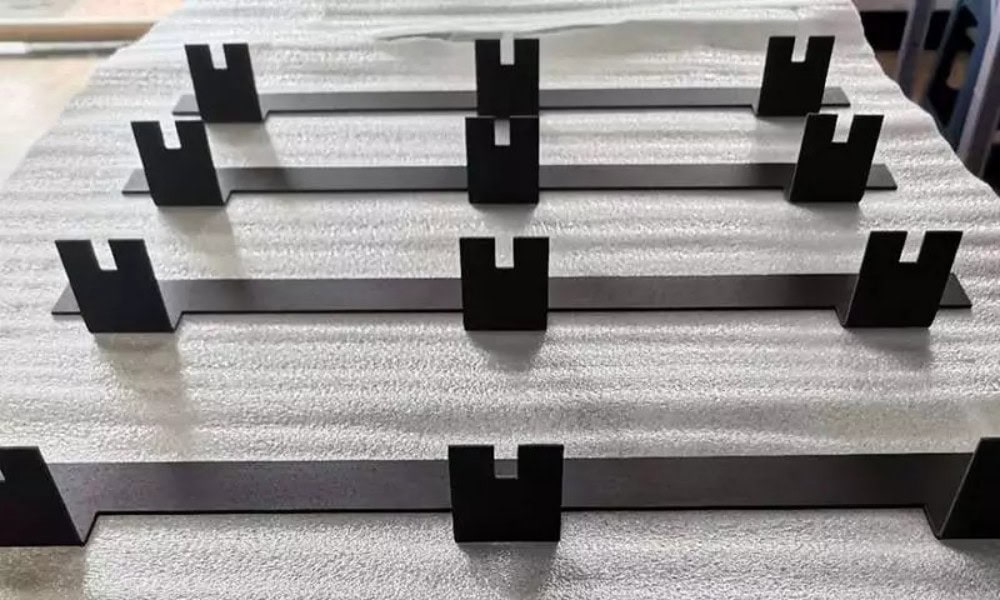

Ruthenium-Iridium-Tin
- Design life 4-6 years
- ASTM D3359 5B grade
- Chloride ion tolerance ≤500ppm
- ≥4000h (1mol/L H₂SO₄, 20kA/m²)
- Maximum current density 5000A/m²
- Oxygen evolution overpotential ≤1.43V

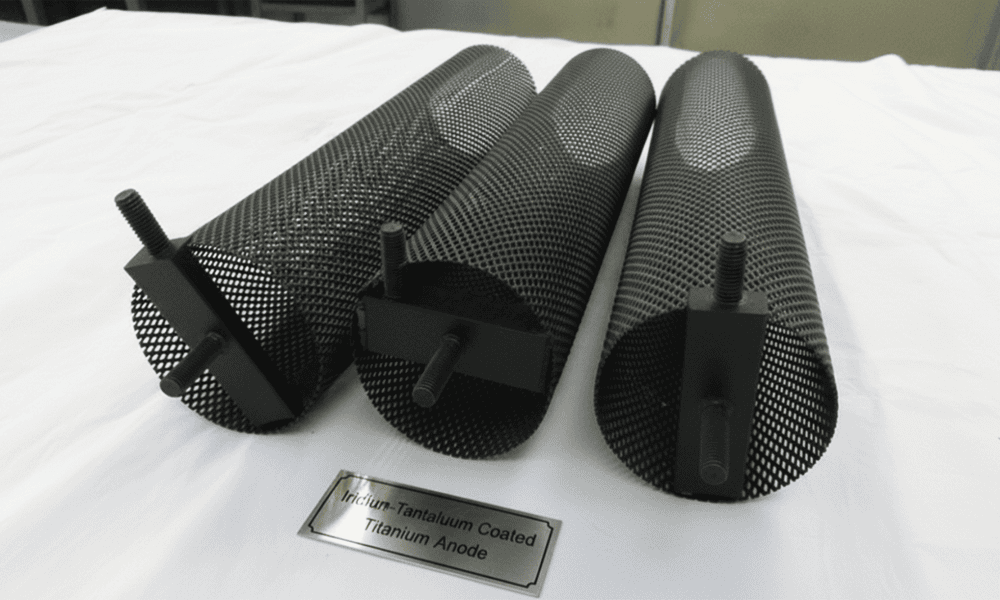

- ASTM Grade 1/2
- Design life 6-8 years
- ASTM D3359 5B grade
- ≥5000h (1mol/L H₂SO₄, 20kA/m²)
- Precious metal loading 15-30g/m²
- Oxygen evolution overpotential ≤1.44V
Coating is the core of the MMO titanium anode, determining its electrochemical performance, corrosion resistance, and lifespan. All Wstitanium coating systems use 99.99% high-purity precious metal raw materials. After 10-20 layers of coating and high-temperature sintering at 450-550℃, a metallurgical bond is formed with the titanium substrate, fully complying with international authoritative standards.
Full Range of Customized MMO Titanium Anode Products
Wstitanium strictly adheres to ASTM standards, using Grade 1/2 pure titanium substrate to customize a full range of product shapes. These anodes perfectly adapt to different tank structures, allowing for direct replacement and installation without large-scale modifications to existing production lines.

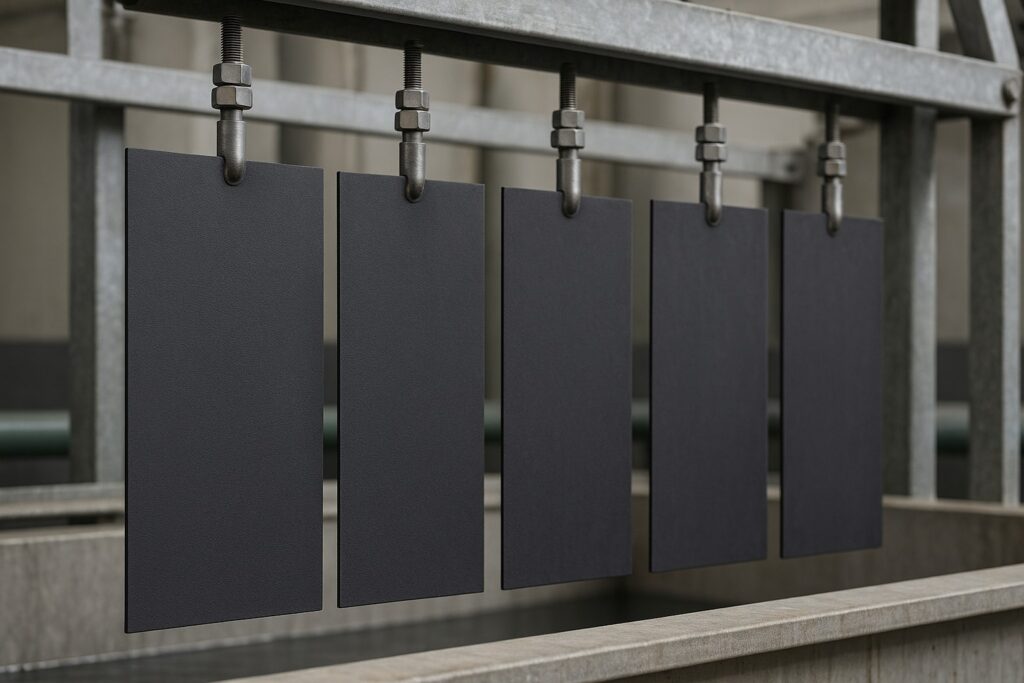

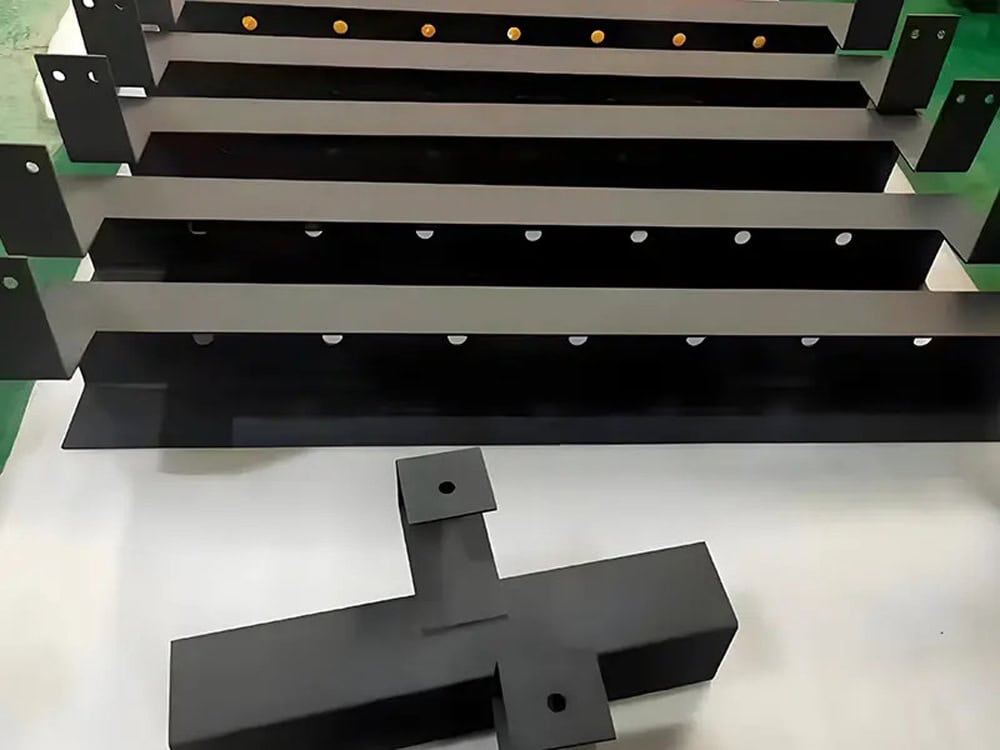

MMO Plate Titanium Anode
Thickness 1-5mm, customizable. Suitable for intermittent phosphating lines, phosphating of large steel structures, phosphating of mechanical parts, etc. Maximum size 6000mm. Uniform current distribution.

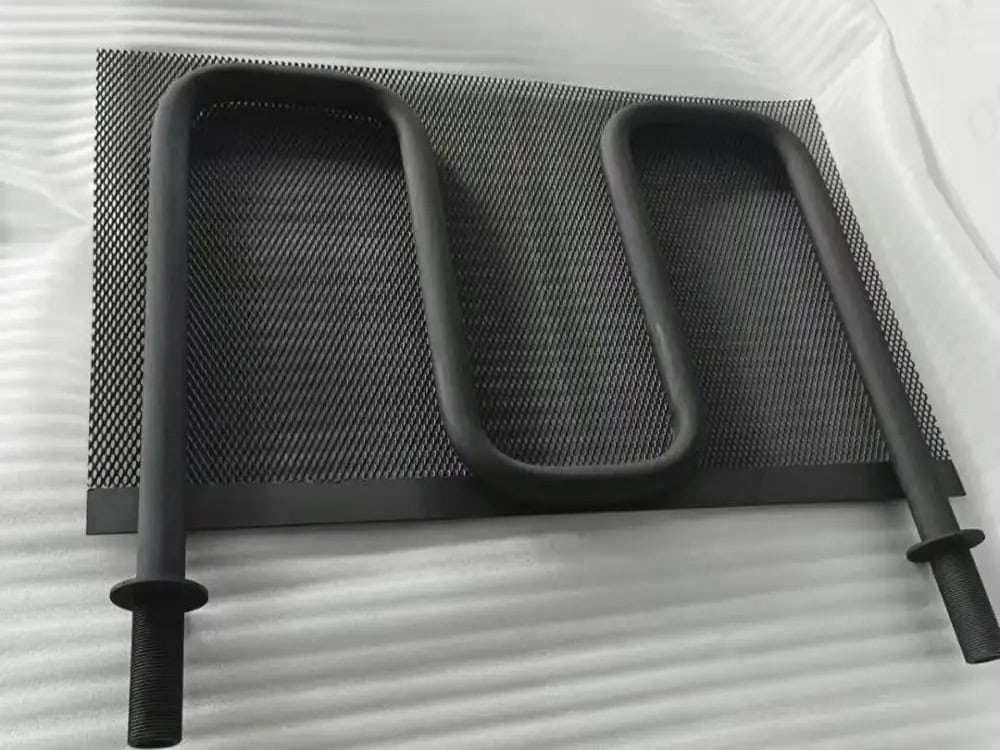

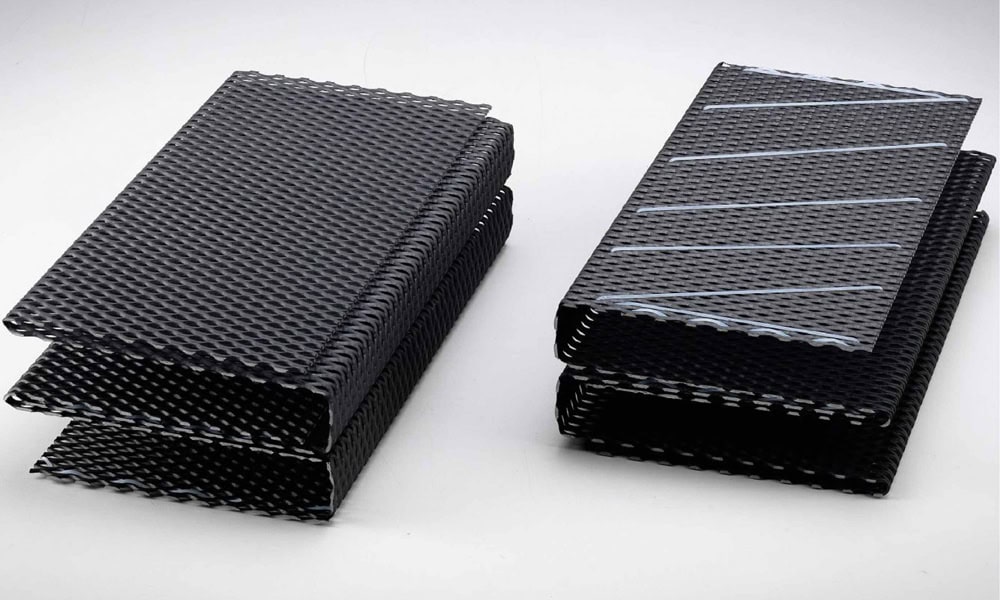

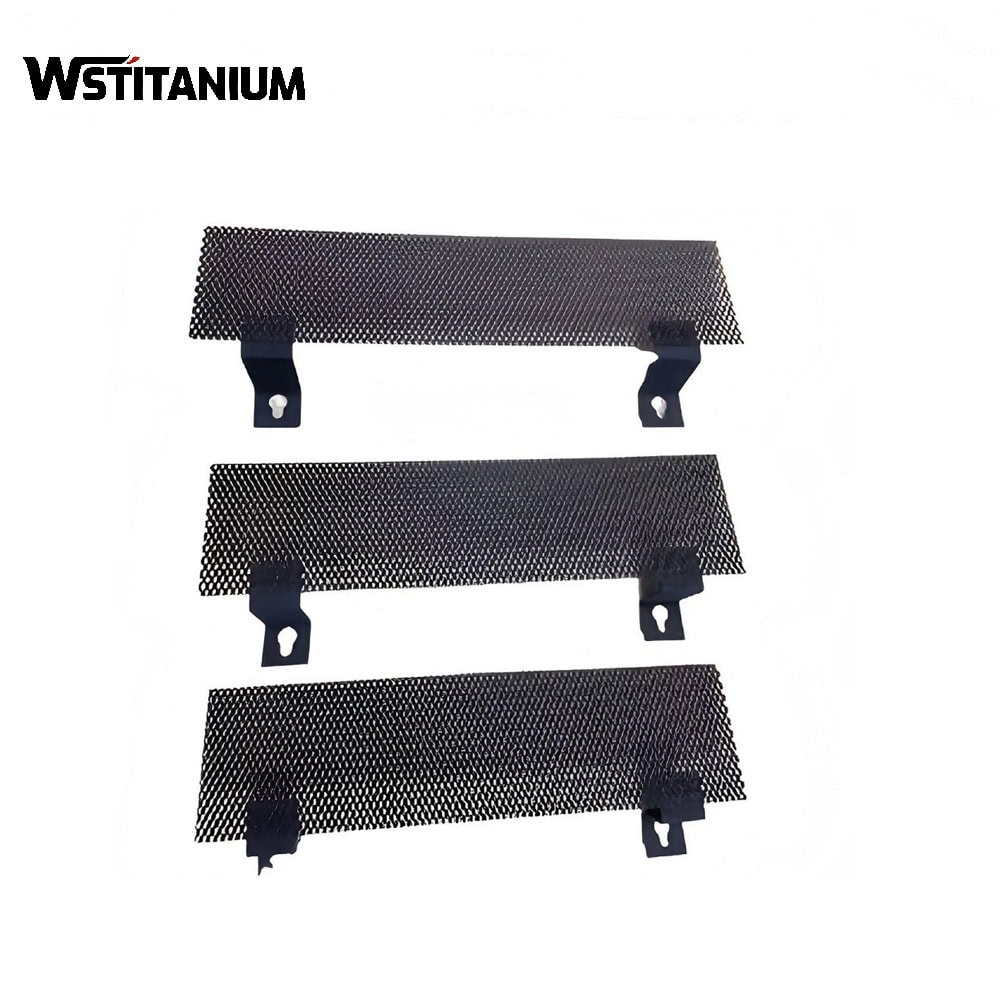

MMO Mesh Titanium Anode
Mesh size: 1×2mm-5×10mm. Thickness 0.5-3mm, customizable. Suitable for high-speed phosphating lines, phosphating of appliance casings, phosphating of aluminum profiles, etc. Fluid resistance reduced by 60%+.

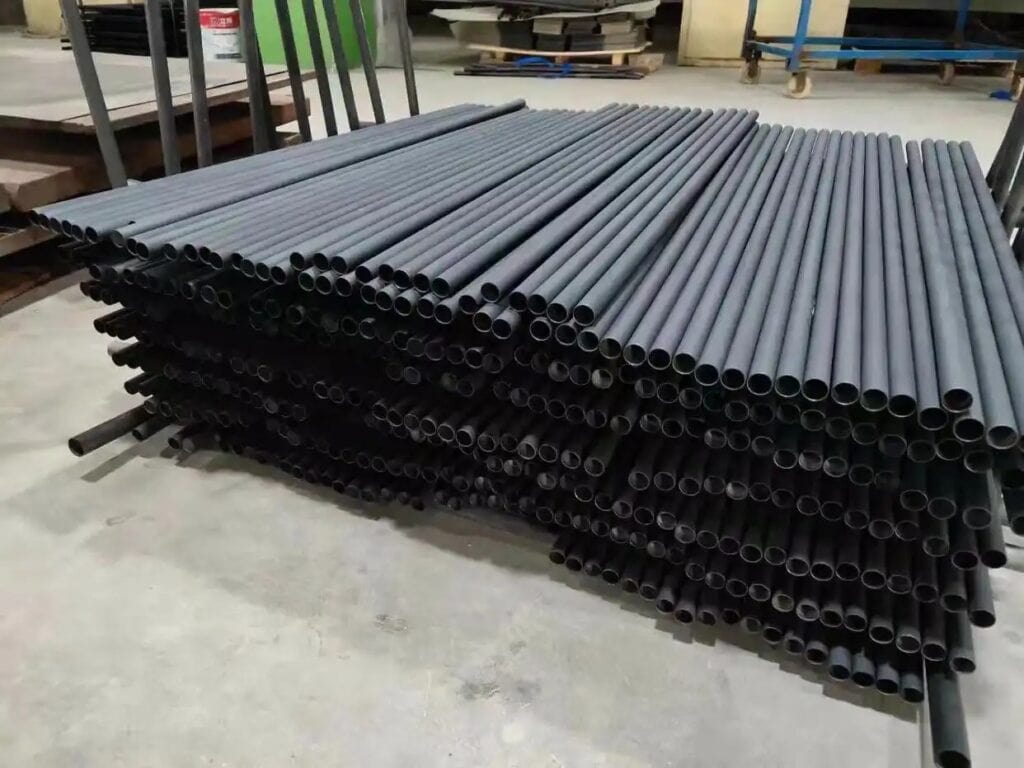

MMO Tube Titanium Anode
Φ10mm-Φ108mm. Maximum length 6 meters. Customizable. Suitable for automotive cathodic electrophoresis lines, phosphating of complex tubes, etc. 360° uniform discharge. Circumferential current distribution deviation ≤3%.

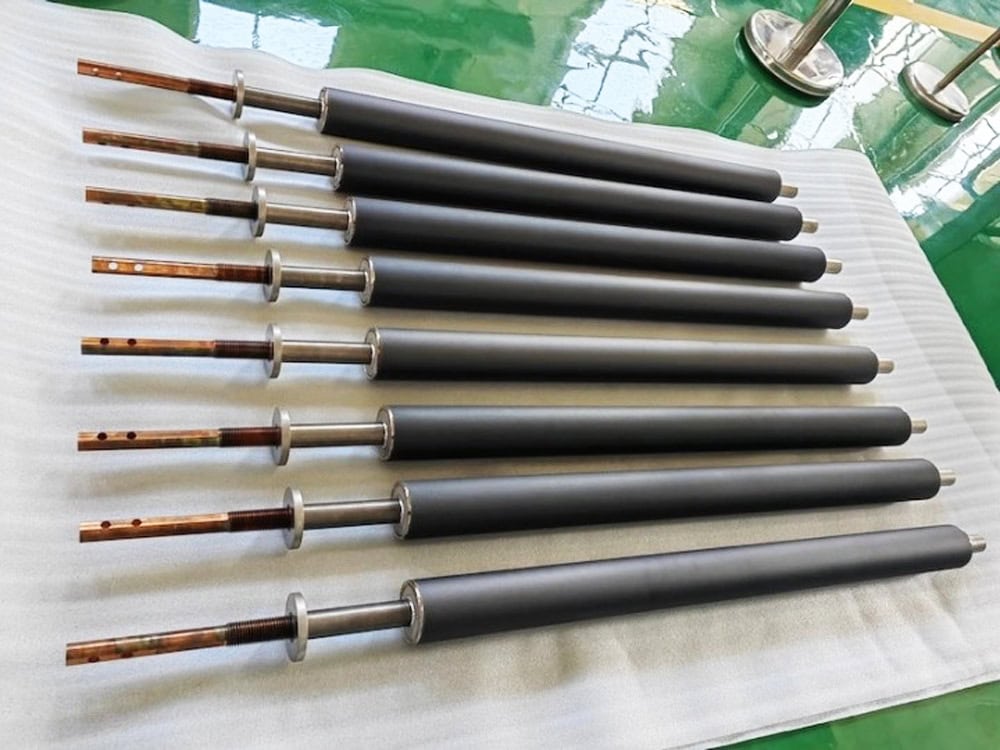

MMO Titanium Rod Anodes
Diameter: Φ10-510mm. Customizable. Length: 500-3000mm. Roughness: Ra≤0.8μm. Flange/Threaded Connection. Suitable for precision micro-workpiece phosphating lines.

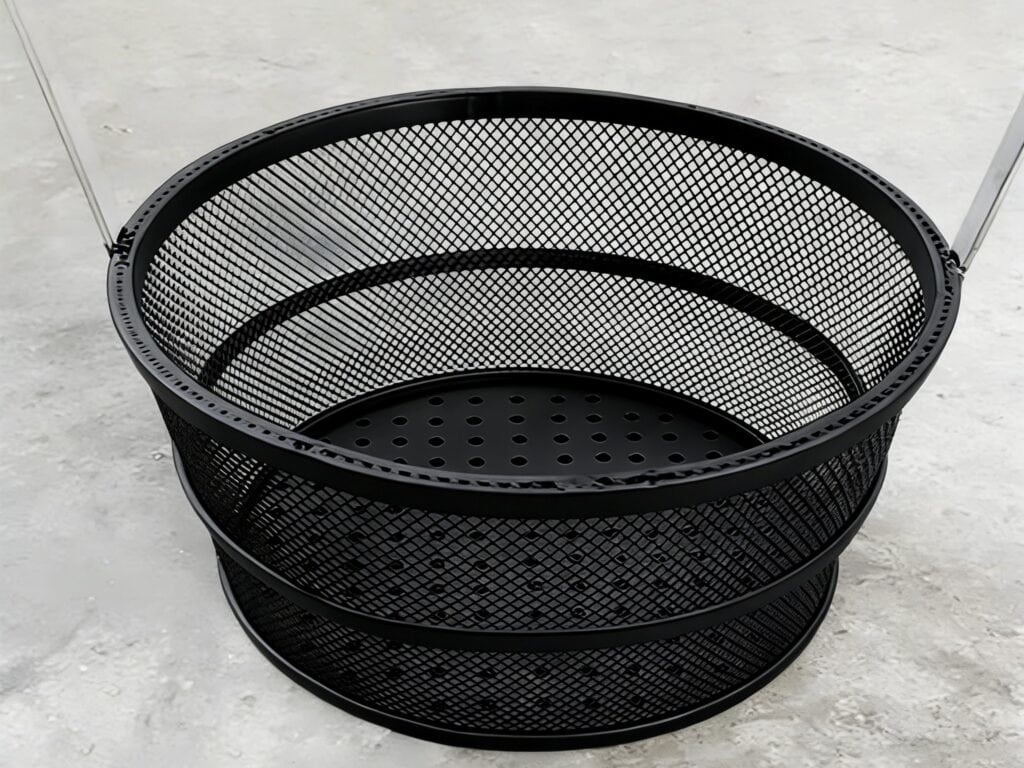

MMO Basket Titanium Anode
Basket anodes are customized according to the tank and workpiece. Length 100-3000mm, Width 300-1500mm, Height 300-1200mm. Vacuum inert gas shielded welding. Suitable for mass phosphating lines for automotive parts.
MMO Custom Titanium Anodes
Wstitanium strictly adheres to ASTM titanium substrate standards and NACE TM0108 anode performance specifications. We custom-manufacture anodes, including mesh, baskets, rods, tubes, and plates, for different production lines.

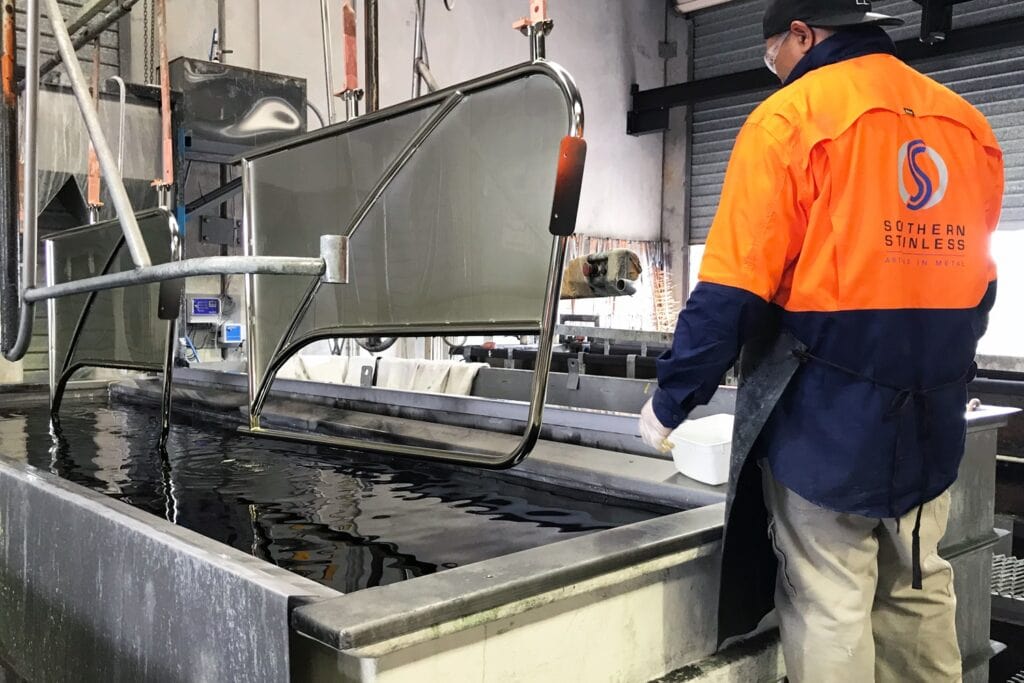

MMO Titanium Anode For Full-Scenario Applications
Based on over ten years of experience in manufacturing electrophosphating MMO titanium anodes, Wstitanium’s products comprehensively cover all mainstream application scenarios of electrophosphating technology. Customized solutions are tailored to the specific technical characteristics and pain points of different industries.

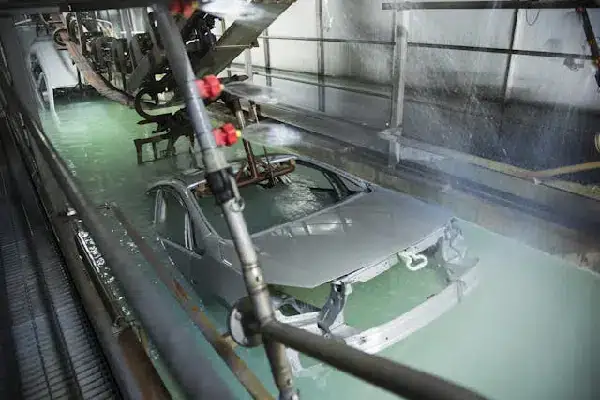

For Automotive Parts
Automotive parts are the sector with the most stringent requirements for electrophosphating technology. Over 95% of complete vehicles utilize cathodic electrophoretic phosphating technology. Wstitanium recommends ruthenium-iridium-tin-titanium quaternary composite oxide coated tubular MMO titanium anodes.
For Home Appliances
The electrophosphating pretreatment of the casings of home appliances such as refrigerators, washing machines, and air conditioners is a core factor determining their appearance quality and lifespan. Wstitanium recommends ruthenium-iridium coated mesh MMO titanium anodes. Product defect rate is reduced to less than 1%.

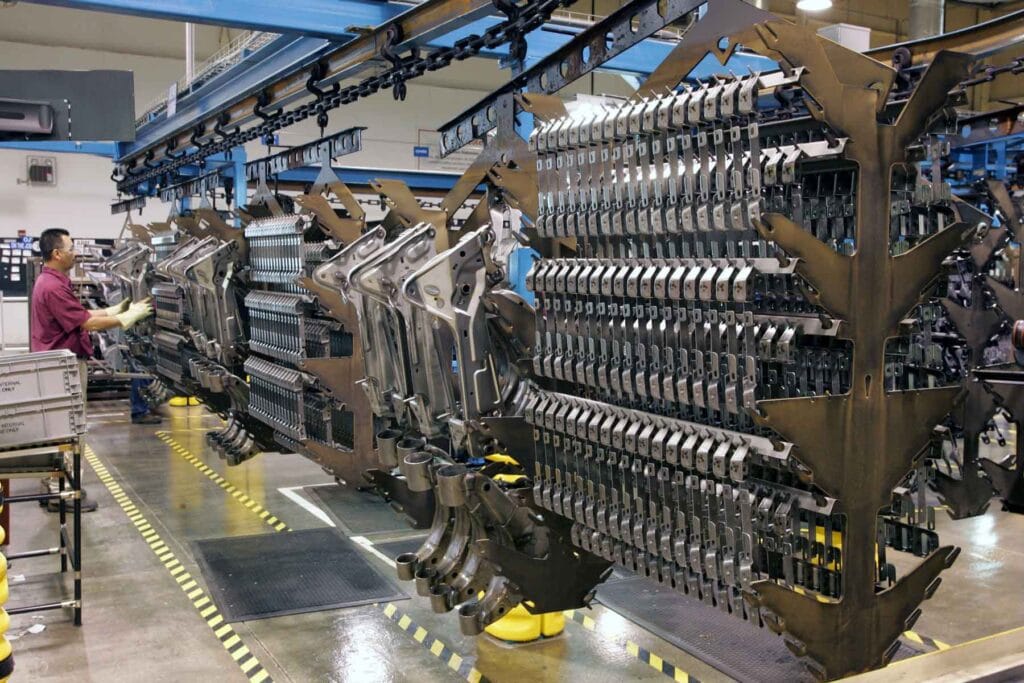

For Fasteners
The characteristics of barrel electrophosphating for fasteners such as screws, nuts, and bolts are high current density, large-scale continuous production, and rapid accumulation of impurities in the bath. Wstitanium recommends ruthenium-iridium-tin-titanium coated plate/mesh MMO titanium anodes.

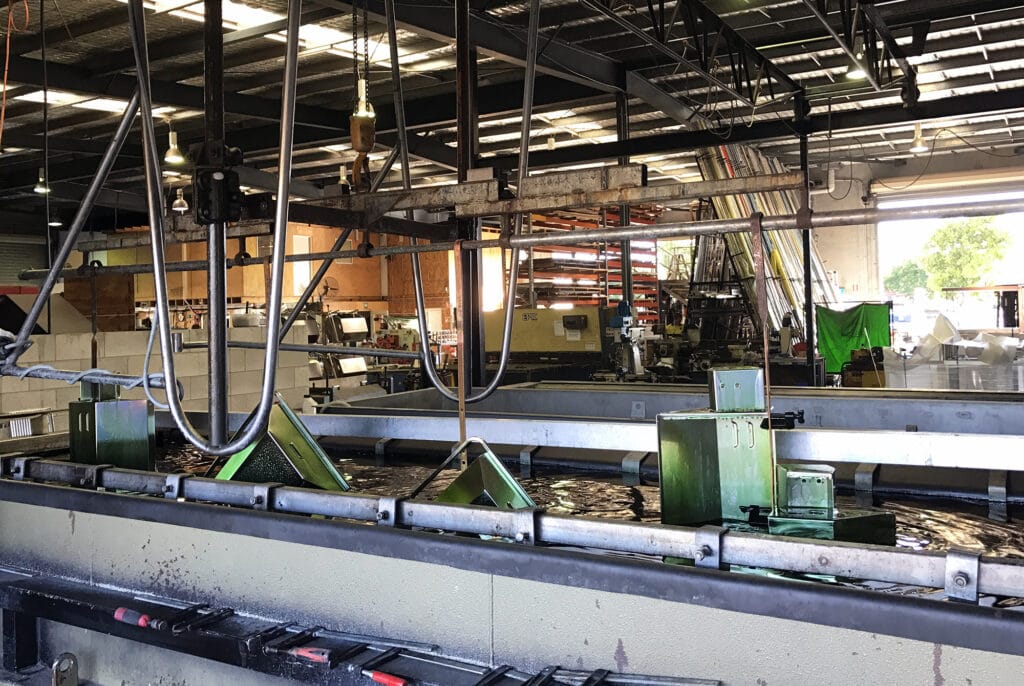

For Large Steel Structures
Wstitanium recommends large-size, integrated plate-type MMO titanium anodes with ruthenium-iridium coating. This ensures uniform current distribution across the entire surface of the 30-meter-long steel structure. Phosphate film thickness deviation is controlled within 2%.

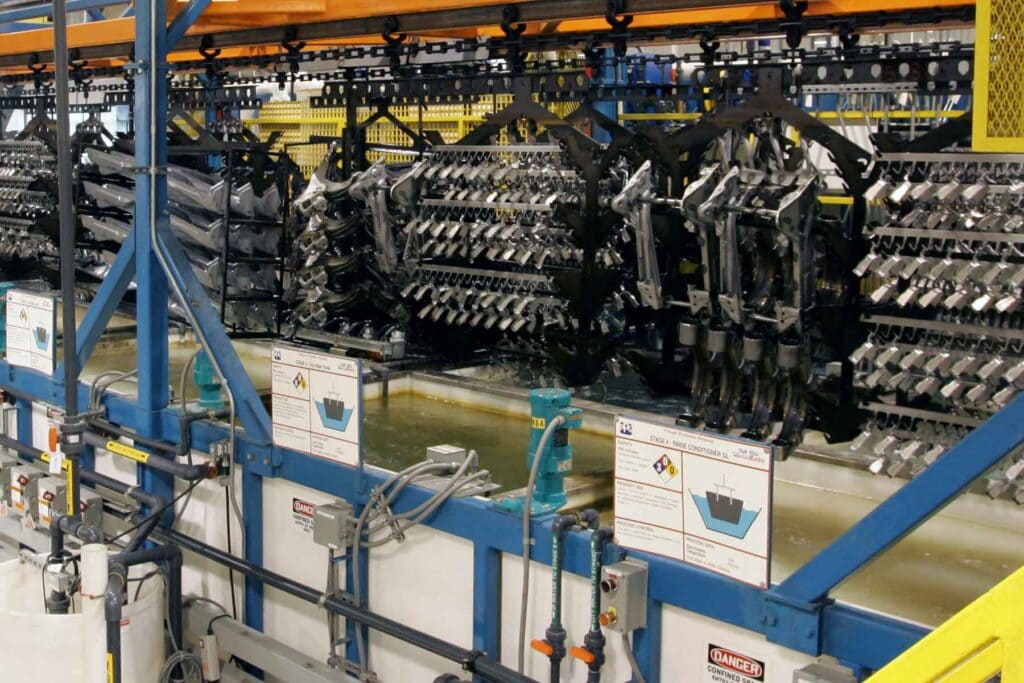

For Construction Machinery
Excavator, loader, and crane production lines often use intermittent tank electrophosphating. Wstitanium recommends a combination of ruthenium-iridium-tin coated mesh and irregularly shaped anodes.

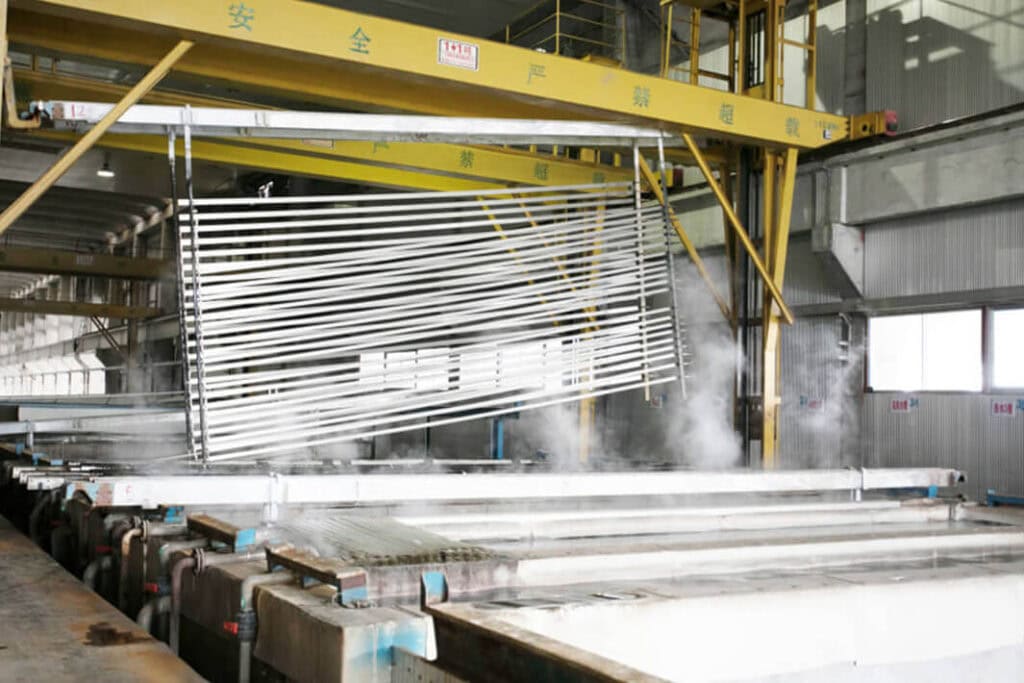

For Aluminum Profiles
Electrophosphating conditions for architectural and industrial aluminum profiles are often weakly acidic and contain small amounts of fluoride ions. Wstitanium recommends ruthenium-iridium tubular/plate-type MMO titanium anodes. These offer excellent resistance to fluoride ion corrosion.
Selection Guide
Choosing the wrong anode can lead to rapid coating failure, soaring costs, and potentially serious issues such as mass scrapping of workpieces and environmental compliance risks. Based on authoritative international standards such as ASTM and NACE, Wstitanium manufactures the most cost-effective MMO titanium anode products for you. You need to provide us with the operating parameters of your electrophosphating production line.
Electrophosphating Technology
- Cathode Electrophoretic Phosphating
- Anodic Electrophoretic Phosphating
- Intermittent Tank Phosphating
- Continuous Phosphating
- Workpiece Phosphating Processing Time.
Bath Composition
- pH
- Elemental Composition
- Chronicity/Fluoride Ion Concentration
- Operating Temperature
- Battery Volume
Electrical
- Current Density
- Maximum Operating Current
- Tank Voltage
- Power Supply Type
Production Line
- Workpiece Material
- Tank Internal Dimensions
- MMO Titanium Anode Installation
- Structure and Maximum Dimensions
Environmental Requirements
Country/Region of Import for MMO Titanium Anode Products, and Corresponding Environmental Regulations (e.g., EU RoHS, REACH, US EPA, NSF, etc.).
Quality Inspection
Wstitanium rigorously verifies the technical parameters of the anodes to ensure products meet international authoritative standards. Quality inspection items include:
Titanium Substrate
ASTM B265 standard Grade 1/2 high-purity titanium. Wstitanium provides material certificates and test reports for each batch of titanium substrate.
Electrochemical Performance
Oxygen evolution overpotential ≤1.45V (vs SHE, 200A/m²), conforming to NACE TM0108 standard; current efficiency ≥92%, ensuring low-energy operation.
Precious Metal Loading
Determined based on design life; ≥10g/m² under normal operating conditions, ≥20g/m² under high corrosion conditions. Wstitanium provides X-ray fluorescence spectroscopy (XRF) test reports.
Accelerated life testing
≥3000h under normal operating conditions (1mol/L H₂SO₄, 20kA/m²), ≥5000h under high corrosion conditions, conforming to NACE TM0108 standard. This is the core indicator for verifying anode lifespan.
MMO Titanium Anodes for Electrophosphating Case Studies
Wstitanium has provided MMO titanium anode products and solutions for electrophosphating to over 100 customers worldwide. Our anode upgrade and retrofit projects for electrophosphating production lines cover more than ten major industries, including automotive, home appliances, and aerospace. Below are our benchmark project case studies. All data comes from actual customer feedback.
1. For Refrigerator Electrophosphating
Malaysia 8 high-speed continuous electrophosphating production lines for refrigerator casings. The original anodes were 304 stainless steel plate anodes. The production lines operate 24 hours a day without interruption.
- Defect rate: 8.2%
- Stainless steel anode lifespan: 3 months
- Scrap cost: over US$500,000
- Electricity cost: over US$800,000
Wstitanium Solution

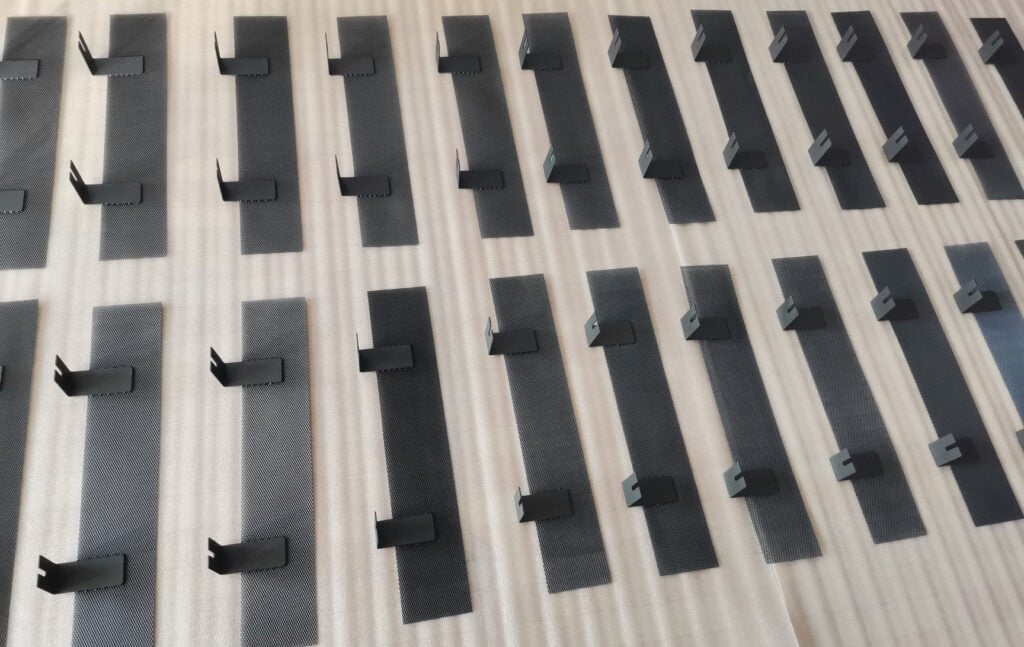

Wstitanium recommends ruthenium-iridium coated mesh MMO titanium anodes. Custom-made 3mm thick titanium mesh with 3×5mm mesh size and 45% open area. It perfectly meets the fluidity requirements of high-speed continuous production lines. Fully automated coating and sintering technology ensures batch-to-batch performance consistency deviation ≤2%. 7×24-hour after-sales technical support.
Updated Results
Anode life extended from 3 months to 4 years. Electricity cost savings of US$270,000. Zero heavy metal leaching. Refrigerator casing paint defect rate reduced to 0.7%.
2. For Electrophosphating of Fasteners
One of Indonesia’s largest automotive fastener manufacturers operates 12 barrel plating electrophosphating lines. The original anodes were lead alloy anodes. These lead anodes leach toxic lead ions and are banned under EU RoHS regulations.
- Lead ion contamination of plating bath
- Electricity costs exceed $3 million
- Original anode lifespan: 6 months
- Fastener pass rate: 89.7%
Wstitanium Solution
Wstitanium recommended ruthenium-iridium-tin coated plate MMO titanium anodes. Custom-manufactured 2mm thick titanium plates. Dimensions perfectly matched existing tanks. Integrated welded structure, high strength, and resistance to high current surges. MMO titanium anodes are SGS tested and provide a complete EU RoHS compliance report.
Updated Results
Completely solves lead contamination problems. Annual order volume increases by 25%. Anode design life of 4 years, eliminating the need for frequent replacements. Production efficiency increases by 20%. Fastener salt spray test failure rate drops to 0.3%. Production line energy consumption decreases by 32%. Annual electricity cost savings of 1.02 million dollars.
3. Electrophosphating of Large Steel Structures
A Polish bridge steel structure manufacturing company, specializing in the production of steel structural components for cross-sea bridges and large stadiums. Two ultra-large electrophosphating tanks, each 32 meters long. The original anodes were stainless steel spliced plate anodes.
- Uneven current distribution
- Phosphating film thickness deviation of 10%
- Annual electricity cost per tank exceeding $1 million
- Anode lifespan of only 4 months
Wstitanium Solution

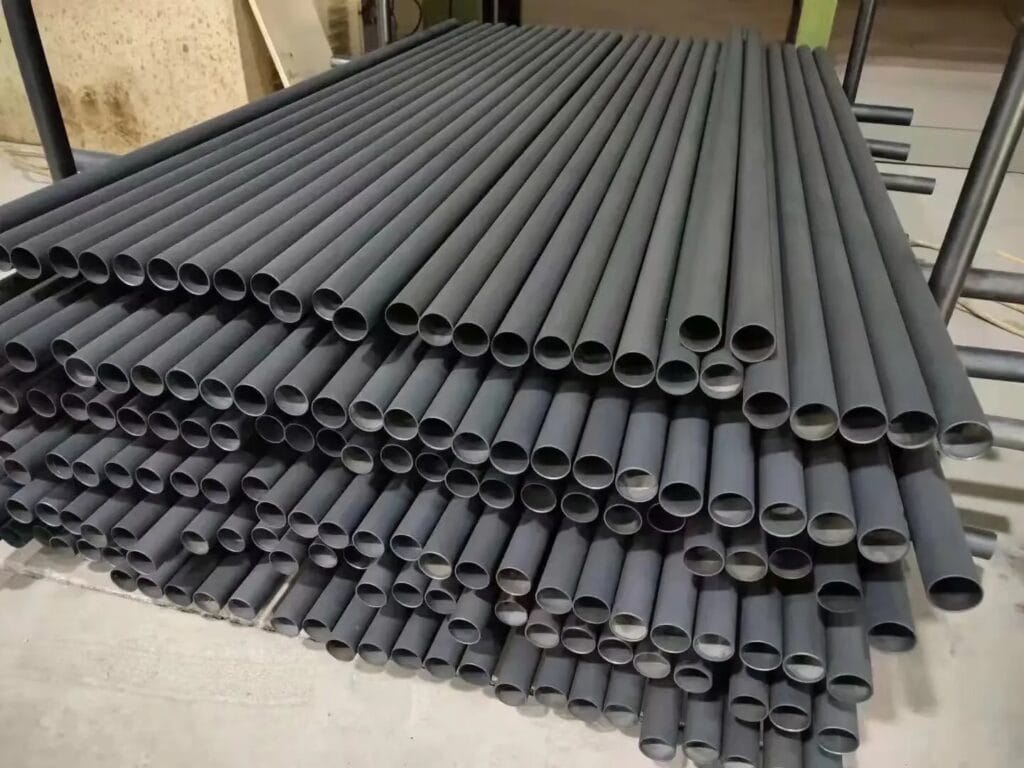

Wstitanium recommends iridium-tantalum coated, 3-meter-long integrated tube MMO titanium anodes. Thickness: 5mm. Diameter: 35mm. Optimized double-sided layered anode arrangement ensures uniform current distribution across the entire surface of the 30-meter-long steel structure. Improved chloride ion resistance, suitable for coastal project conditions.
Updated Results
Phosphating film thickness deviation of steel structural components reduced from 10% to 1%. Salt spray resistance improved by 100%, meeting the high corrosion resistance requirements of cross-sea bridges. Production line energy consumption reduced by 22%. Annual electricity cost savings per tank of $660,000. Anode life extended from 6 months to 4 years.
Frequently Asked Questions (FAQ)and Answers
A: For electrophosphating/electrophoretic coating lines, mixed metal oxide (MMO) titanium anodes are currently recognized globally as the optimal anode material. This conclusion has been fully validated by industry standards from the National Surface Finishing Association (NASF) and the Electrochemical Society (ECS), as well as decades of industrial practice.
Traditional stainless steel and lead anodes have inherent and unsolvable defects: stainless steel anodes continuously leach iron ions, contaminating the bath solution. Lead anodes leach toxic lead ions and have been banned in major global markets such as the EU and North America. MMO titanium anodes, with their core advantages of dimensional stability, zero heavy metal leaching, low oxygen evolution overpotential, long lifespan, and environmental compliance, have become the standard for high-end electrophosphating lines worldwide.
A: Under proper usage and matching operating conditions, Wstitanium’s MMO titanium anodes for electrophosphating have a designed lifespan of 3-8 years. The specific lifespan depends on the coating system you choose, the precious metal load, and the production line conditions.
Ruthenium-iridium coating: Design lifespan 3-5 years under normal operating conditions.
Ruthenium-iridium-tin coating: Design lifespan 4-6 years under high-speed continuous production line conditions.
Iridium-tantalum coating: Design lifespan 5-8 years under harsh corrosion conditions.
The lifespan of all Wstitanium products has been verified through accelerated life testing as specified in the NACE TM0108 standard, ensuring that the actual lifespan meets the design standards.
A: Yes, they can be directly replaced without requiring large-scale modifications to existing production lines. Wstitanium customizes MMO titanium anodes 1:1 based on your existing anode dimensions, installation, conductivity, and tank dimensions.
A: The top recommendation is the MMO titanium anode with a ruthenium-iridium-tin-titanium quaternary composite oxide coating. This is also the mainstream choice of leading global automakers.
1. It has chloride ion resistance, operating stably for extended periods in electrophoresis baths containing ≤500ppm chloride ions.
2. It has excellent high current density resistance, capable of withstanding a maximum current density of 5000A/m².
3. It offers excellent current distribution uniformity, significantly improving the uniformity of the phosphating film in complex locations such as vehicle body cavities and weld seams.
4. It has a design life of 4-6 years, significantly reducing the frequency of anode replacement.
A: Absolutely. We have a professional R&D team, advanced CNC machining centers, and automated production lines to provide you with comprehensive non-standard customization services. Customization services include: coating system customization, product shape customization, size specification customization, and installation customization.
Wstitanium achieves a minimum dimensional accuracy of ±0.02mm and a maximum single-piece length of 6 meters for customized production. We support rapid small-batch trial production. Sample delivery can be completed in 7-15 days. Mass production delivery takes 30-45 days. You only need to provide existing anode drawings (PDF, STP, or hand-drawn drawings), tank dimensions, and operating parameters.
A: The recommended operating current density for Wstitanium MMO titanium anodes used in electrophosphating is 100-5000 A/m².
Conventional intermittent tank phosphating: 100-500 A/m².
High-speed continuous phosphating of appliance housings: 200-1000 A/m².
Cathode electrophoretic phosphating of automotive parts: 600-2000 A/m².
Barrel plating electrophosphating of fasteners: 500-3000 A/m².
